HomeProductsCircuit ProtectionTVS - Diodes3.0SMCJ22AQ-13

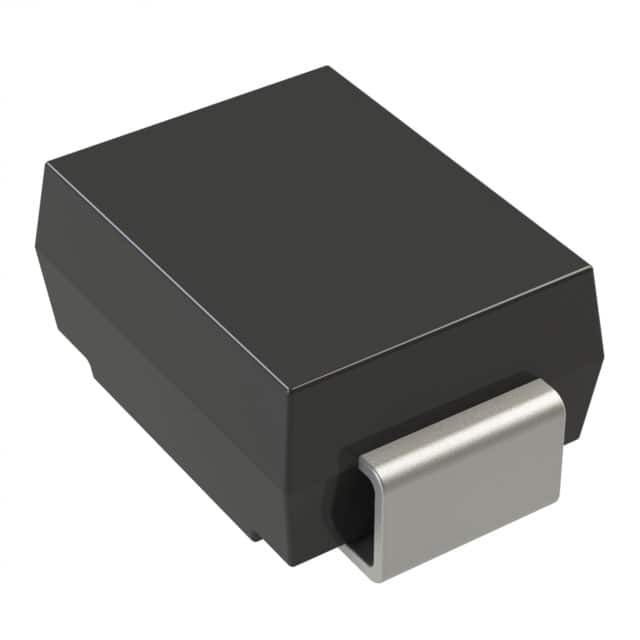

3.0SMCJ22AQ-13 Image Image may be representation.
See specs for product details.
3.0SMCJ22AQ-13Diodes Incorporated TVS DIODE 22VWM 35.5VC SMC
Part Number3.0SMCJ22AQ-13
PackageDO-214AB, SMC
ManufacturerDiodes Incorporated
RoHs StatusROHS3 Compliant
Manufacturer Part NumberDiodes Incorporated-3.0SMCJ22AQ-13
DescriptionTVS DIODE 22VWM 35.5VC SMC
In stock21371
Data sheet
1.3.0SMCJ22AQ-13.pdf 2.3.0SMCJ22AQ-13.pdf 3.3.0SMCJ22AQ-13.pdf 4.3.0SMCJ22AQ-13.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 21371 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - 3.0SMCJ22AQ-13
  • 3.0SMCJ22AQ-13 Tech Specifications
    Diodes Incorporated - 3.0SMCJ22AQ-13 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated - 3.0SMCJ22AQ-13
    Manufacturer Diodes Incorporated
    Voltage - Reverse Standoff (Typ) 22V
    Voltage - Clamping (Max) @ Ipp 35.5V
    Voltage - Breakdown (Min) 24.4V
    Unidirectional Channels 1
    Type Zener
    Supplier Device Package SMC
    Series Automotive, AEC-Q101
    Power Line Protection Yes
    Power - Peak Pulse 3000W (3kW)
    Package / Case DO-214AB, SMC
    Package Tape & Reel (TR)
    Operating Temperature -55°C ~ 175°C (TJ)
    Mounting Type Surface Mount
    Current - Peak Pulse (10/1000µs) 84.5A
    Capacitance @ Frequency 3000pF @ 1MHz
    Base Product Number 3.0SMCJ
    Applications Automotive
  • The3.0SMCJ22AQ-13is a Circuit Protection component, full developed and mass-produced by Diodes Incorporated manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is TVS DIODE 22VWM 35.5VC SMC and it falls under the category of TVS - Diodes, with Manufacturer of Diodes Incorporated and Voltage - Reverse Standoff (Typ) of 22V and Voltage - Clamping (Max) @ Ipp of 35.5V. Efficient purchasing through Diodes-Electronic.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for 3.0SMCJ22AQ-13 or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute 3.0SMCJ22CAQ-13 3.0SMCJ22A-13 3.0SMCJ26CAQ-13 3.0SMCJ26AQ-13
Part Number 3.0SMCJ22CAQ-13 3.0SMCJ22A-13 3.0SMCJ26CAQ-13 3.0SMCJ26AQ-13
Manufacturer Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
Operating Temperature - - - -
Mounting Type - - - -
Type - - - -
Series - * * *
Base Product Number - - - -
Current - Peak Pulse (10/1000µs) - - - -
Power Line Protection - - - -
Power - Peak Pulse - - - -
Voltage - Reverse Standoff (Typ) - - - -
Package - Bulk Bulk Bulk
Applications - - - -
Capacitance @ Frequency - - - -
Voltage - Clamping (Max) @ Ipp - - - -
Voltage - Breakdown (Min) - - - -
Unidirectional Channels - - - -
Package / Case - - - -
Supplier Device Package - - - -
