HomeProductsSensors, TransducersMagnetic Sensors - Switches (Solid State)AH3777-P-B

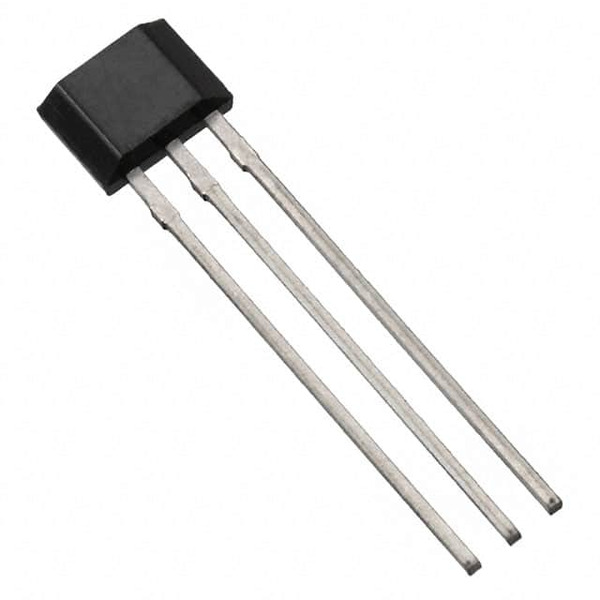

AH3777-P-B Image Image may be representation.
See specs for product details.
AH3777-P-BDiodes Incorporated MAGNETIC SWITCH LATCH 3SIP
Part NumberAH3777-P-B
Package3-SIP Module
ManufacturerDiodes Incorporated
RoHs StatusROHS3 Compliant
Manufacturer Part NumberDiodes Incorporated-AH3777-P-B
DescriptionMAGNETIC SWITCH LATCH 3SIP
In stock48032
Data sheet
1.AH3777-P-B.pdf 2.AH3777-P-B.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 48032 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - AH3777-P-B
  • AH3777-P-B Tech Specifications
    Diodes Incorporated - AH3777-P-B technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated - AH3777-P-B
    Manufacturer Diodes Incorporated
    Voltage - Supply 3V ~ 28V
    Test Condition -40°C ~ 125°C
    Technology Hall Effect
    Supplier Device Package 3-SIP
    Series -
    Sensing Range 17mT Trip, -17mT Release
    Polarization South Pole
    Package / Case 3-SIP Module
    Package Bulk
    Output Type Open Drain
    Operating Temperature -40°C ~ 125°C (TA)
    Mounting Type Through Hole
    Function Latch
    Features Temperature Compensated
    Current - Supply (Max) 4mA
    Current - Output (Max) 60mA
    Base Product Number AH3777
  • TheAH3777-P-Bis a Sensors, Transducers component, full developed and mass-produced by Diodes Incorporated manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is MAGNETIC SWITCH LATCH 3SIP and it falls under the category of Magnetic Sensors - Switches (Solid State), with Manufacturer of Diodes Incorporated and Voltage - Supply of 3V ~ 28V and Test Condition of -40°C ~ 125°C. Efficient purchasing through Diodes-Electronic.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for AH3777-P-B or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute AH3775-P-B AH3776-P-B AH3777-P-A AH3776-P-A
Part Number AH3775-P-B AH3776-P-B AH3777-P-A AH3776-P-A
Manufacturer Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
Package - Bulk Bulk Bulk
Package / Case - - - -
Voltage - Supply - - - -
Output Type - - - -
Base Product Number - - - -
Series - * * *
Current - Supply (Max) - - - -
Supplier Device Package - - - -
Features - - - -
Function - - - -
Current - Output (Max) - - - -
Mounting Type - - - -
Test Condition - - - -
Operating Temperature - - - -
Technology - - - -
Polarization - - - -
Sensing Range - - - -
