HomeProductsDiscrete Semiconductor ProductsDiodes - Rectifiers - SingleSBRT05U20LPQ-7B

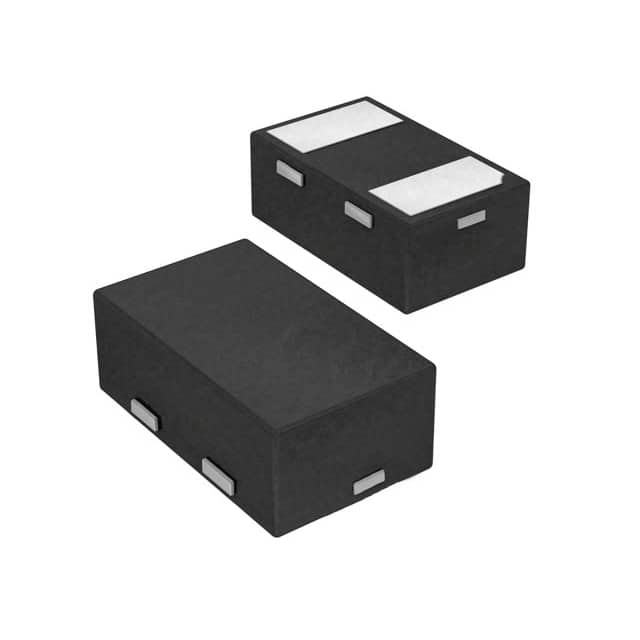

SBRT05U20LPQ-7B Image Image may be representation.
See specs for product details.
SBRT05U20LPQ-7BDiodes Incorporated DIODE SBR 20V 500MA 2DFN
Part NumberSBRT05U20LPQ-7B
Package0402 (1006 Metric)
ManufacturerDiodes Incorporated
RoHs StatusROHS3 Compliant
Manufacturer Part NumberDiodes Incorporated-SBRT05U20LPQ-7B
DescriptionDIODE SBR 20V 500MA 2DFN
In stock2940
Data sheet
1.SBRT05U20LPQ-7B.pdf 2.SBRT05U20LPQ-7B.pdf 3.SBRT05U20LPQ-7B.pdf
Please click " QUICK RFQ " and provide your contact information,
or email us at [email protected].
We will respond promptly to your inquiry.
In stock: 2940 pcs Required fields are indicated by an asterisk ( * )

Please send RFQ, we will respond immediately.

  • Specifications
  • Product Details - SBRT05U20LPQ-7B
  • SBRT05U20LPQ-7B Tech Specifications
    Diodes Incorporated - SBRT05U20LPQ-7B technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated - SBRT05U20LPQ-7B
    Manufacturer Diodes Incorporated
    Voltage - Forward (Vf) (Max) @ If 390 mV @ 500 mA
    Voltage - DC Reverse (Vr) (Max) 20 V
    Technology Super Barrier
    Supplier Device Package X1-DFN1006-2
    Speed Fast Recovery =< 500ns, > 200mA (Io)
    Series Automotive, AEC-Q101
    Reverse Recovery Time (trr) 6 ns
    Package / Case 0402 (1006 Metric)
    Package Tape & Reel (TR)
    Operating Temperature - Junction -65°C ~ 150°C
    Mounting Type Surface Mount
    Current - Reverse Leakage @ Vr 50 µA @ 20 V
    Current - Average Rectified (Io) 500mA
    Capacitance @ Vr, F 14pF @ 20V, 1MHz
    Base Product Number SBRT05
  • TheSBRT05U20LPQ-7Bis a Discrete Semiconductor Products component, full developed and mass-produced by Diodes Incorporated manufacturer, subject to rigorous quality control and successfully meeting production standards. The product description is DIODE SBR 20V 500MA 2DFN and it falls under the category of Diodes - Rectifiers - Single, with Manufacturer of Diodes Incorporated and Voltage - Forward (Vf) (Max) @ If of 390 mV @ 500 mA and Voltage - DC Reverse (Vr) (Max) of 20 V. Efficient purchasing through Diodes-Electronic.com. Here, you can find a wide variety of electronic components produced by manufacturers worldwide. If you do not find the information you are looking for, you can obtain more valuable information via email [email protected], such as stock quantities, special pricing, datasheets, and more details for SBRT05U20LPQ-7B or order. We are always pleased to hear from you, so feel free to contact us at any time.

Product Comparison

Product Attribute SBRT05U20LPSQ-7B SBRT05U20LPS-7B SBRT05U10LPQ-7B SBRT05U20LP-7B
Part Number SBRT05U20LPSQ-7B SBRT05U20LPS-7B SBRT05U10LPQ-7B SBRT05U20LP-7B
Manufacturer Diodes Incorporated Diodes Incorporated Diodes Incorporated Diodes Incorporated
Package / Case - - - -
Series - * * *
Voltage - DC Reverse (Vr) (Max) - - - -
Operating Temperature - Junction - - - -
Base Product Number - - - -
Mounting Type - - - -
Capacitance @ Vr, F - - - -
Supplier Device Package - - - -
Current - Average Rectified (Io) - - - -
Speed - - - -
Technology - - - -
Current - Reverse Leakage @ Vr - - - -
Voltage - Forward (Vf) (Max) @ If - - - -
Package - Bulk Bulk Bulk
Reverse Recovery Time (trr) - - - -
